Race track lighting systems must be designed for durability, with considerations for weather resistance, glare control, lux requirements, and uniformity. Using materials like aluminum and stainless steel, proper shielding, and moisture resistance ensures functionality in varying conditions. Effective lighting enhances safety, visibility, and the overall experience for both drivers and spectators, regardless of the environment.
Lighting at a race track ensure safety of all drivers, the quality of the spectator experience, and the general functionality of the track. A well-lit race track not only ensures that competitors can perform at their best, but it also creates an environment where spectators can enjoy the race comfortably, regardless of the time of day or weather conditions. Understanding the various factors that go into designing a race track’s lighting system is crucial to ensure safety, performance, and enjoyment for everyone involved.
Reach out for free lighting consultation
| Event Type | Lux Requirement | Purpose |
|---|---|---|
| Standard Event | 500 lux | Sufficient for lower-speed races and general track visibility |
| Night Race (General) | 1,000 – 1,500 lux | Ensures visibility for high-speed races during nighttime |
| High-Speed Professional Race (e.g., Formula 1, NASCAR) | 1,000 – 1,500 lux or higher | Required for high-speed events to maintain visibility at high speeds |
| Pit Areas & Team Garages | 500 – 1,000 lux | Provides clear lighting for team operations and pit stops |
| Spectator Stands | 300 – 500 lux | Comfortably lights the stands without overshadowing the track |
| Media/Television Broadcast | 1,000 lux (approx.) | Ensures high-quality broadcast without flicker or shadows |
Lux is the unit used to measure illuminance, which refers to the amount of light that falls on a surface. For race tracks, achieving the correct lux level is essential to ensure the safety and performance of the drivers as well as the comfort and viewing experience of the spectators. The lux requirement for a race track varies depending on the type of race, the track’s design, and the time of day the race is taking place. Understanding these requirements helps to guarantee visibility and clear distinction between different parts of the race, which is necessary for both safety and enjoyment.
The lux levels required for a race track depend on the scale of the event and its specific needs. Different types of racing events, such as professional races or smaller, local competitions, can have varying light intensity demands.
For professional race tracks hosting events such as Formula 1 or NASCAR, lighting must be robust enough to ensure that drivers can maintain optimal visibility, even during nighttime races. For these high-speed motorsports, a higher lux level is necessary due to the fast-paced nature of the events. These events typically require lux levels of 1,000 to 1,500 lux or even higher in some instances. The higher the lux level, the better the lighting will be for these high-speed races, which have fast-moving cars and tight turns that need clear visibility for safety and performance.
On the other hand, amateur or lower-profile races may not require such high lux levels. For standard events where the speed of vehicles is generally slower and safety concerns may not be as intense, a lux level of 500 lux can be sufficient. However, it is still essential to ensure that every part of the track, from the straightaways to the corners, is adequately illuminated to avoid any accidents or mishaps. A minimum of 500 lux ensures that drivers can see the track surface and potential hazards, while also allowing spectators to enjoy the event with clear visibility.

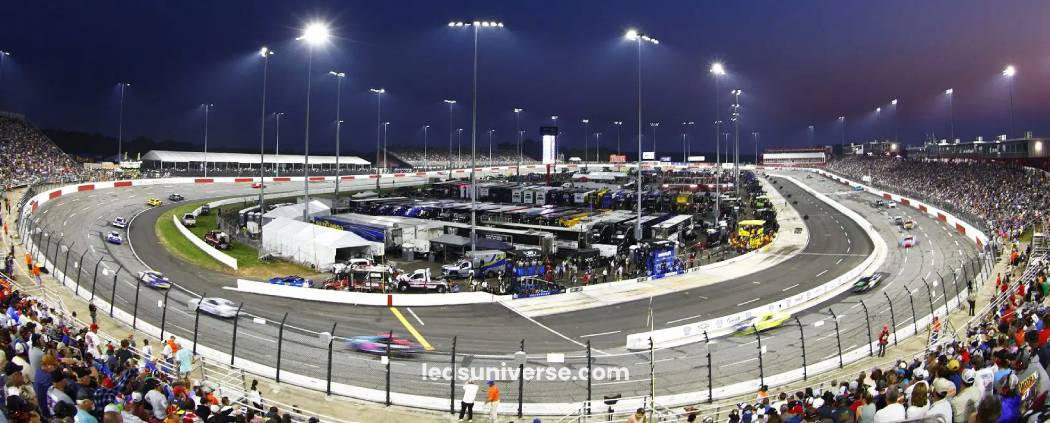

The distribution of lux across the entire race track is another important factor to consider. In addition to the overall lux requirement, it is crucial to ensure that the light is uniformly distributed throughout the track. Uneven lighting can create dark spots that can significantly affect visibility, posing safety risks for drivers, as they may not be able to spot other vehicles, obstacles, or sudden changes in track conditions.
A well-lit race track should have even illumination across the track surface, from the straightaways to the turns, including pit lanes and spectator areas. The lighting system should avoid creating bright spots that can cause temporary blindness for drivers or impair the viewing experience for spectators. It is essential that light intensity remains steady and consistent to ensure a clear line of sight and improve the overall safety and comfort of the event.
To achieve the desired distribution, lighting designers typically use advanced technologies, such as advanced optics and properly placed lighting poles. Proper fixture placement ensures that light is directed precisely to the areas where it is needed most, whether it’s on the track surface, in the pit lane, or in the grandstands.
In motorsport events, lighting needs differ for both the drivers on the track and the spectators in the stands. While both groups need adequate lighting, their specific needs vary significantly.
For drivers, the primary concern is visibility on the track. They need enough light to detect obstacles, other vehicles, and track boundaries, especially when navigating at high speeds during nighttime events. A lux level of around 1,000 to 1,500 ensures that drivers can maintain a high level of awareness and control, even under artificial lighting. The lux level must also be maintained consistently, without rapid fluctuations, so that drivers can react quickly to sudden changes or hazards.
For spectators, lighting serves a different purpose. Spectators need a level of brightness that allows them to clearly see the race and the action happening on the track. Lighting for the stands, however, cannot be too bright, as it could detract from the primary focus: the race itself. A proper balance must be achieved, with sufficient lighting for comfort and clarity, while ensuring the race track remains the focal point of attention. Spectator areas should be lit to a level that allows easy viewing of the event without overshadowing the action on the track.
Moreover, media and television broadcast lighting must be carefully adjusted to provide high-quality images without flickering or shadowing. Television broadcasts, especially those in high definition, require specialized lighting setups to ensure a clear and accurate portrayal of the race.

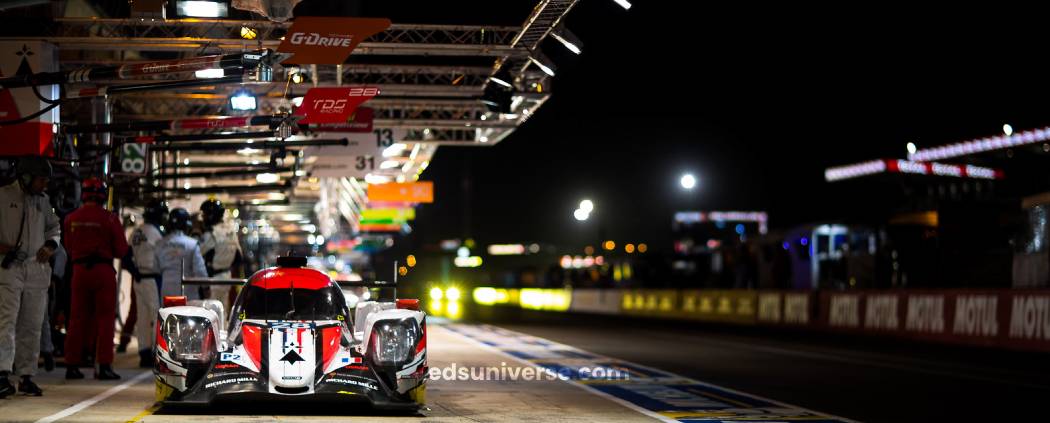

Night races present a unique challenge for race track lighting. With the absence of natural daylight, artificial lighting becomes the sole source of illumination, making it all the more important to get the lux levels just right. Night races typically demand more powerful lighting systems to compensate for the lack of ambient light. The lighting system must ensure that the track, pit areas, and spectator stands are all evenly lit, maintaining clarity for the drivers and providing an enjoyable viewing experience for the audience.
During these events, it is not just the track that needs to be illuminated but also other elements such as the pit stops, team areas, and the stands where spectators are seated. The system must be flexible enough to cater to the varying lux requirements across different areas. Professional night races, such as those in Formula 1 or Le Mans, can see lux levels reaching up to 2,000 lux in some sections of the track, particularly in high-speed straights and critical cornering areas where high visibility is paramount.
The design and placement of the lighting system must ensure that all components of the race experience are sufficiently illuminated. This includes the track surface, pit areas, team garages, spectator stands, and media booths. While the focus is primarily on the track itself, ensuring that other areas are not left in the dark is crucial for the smooth operation of the event.
By striking a balance between lighting for safety, visibility, and spectator comfort, the lighting system can enhance the overall event experience. Properly implemented, the lighting system ensures that drivers have the visibility they need to race safely, while spectators can enjoy the action from their seats. Additionally, media teams and broadcasters can capture high-quality footage without interference from poor lighting conditions.
Uniform lighting plays a vital role in the overall design of race track lighting systems. It ensures that all sections of the track are equally illuminated, without any noticeable dark spots or areas with excessive glare. Uniform lighting is crucial for providing clear visibility to drivers and enhancing the spectator experience. Without consistent illumination, safety could be compromised, and the event’s atmosphere might suffer, as spectators may not be able to fully enjoy the race.
Uniformity is often measured using a ratio, known as the uniformity ratio, which compares the minimum light intensity to the maximum light intensity across the track. This ratio helps to determine whether the lighting is evenly distributed. Ideally, a uniformity ratio should fall between 0.5 and 0.8.
A uniformity ratio of 0.5 means that the minimum light level is half of the maximum level. While this is acceptable for many tracks, a ratio closer to 0.8 is generally preferred, as it ensures that light levels are more consistent throughout the race track. A ratio of 0.8 means that there is only a small difference between the darkest and brightest spots on the track, which improves visibility for both drivers and spectators. Achieving optimal uniformity depends on various factors such as the layout of the track, the arrangement of light poles, and the types of fixtures used.
The arrangement and orientation of light poles are crucial for achieving the desired uniformity. Proper placement of light fixtures ensures that light is evenly spread across the track and that no areas are overly illuminated or too dark. For example, light poles need to be positioned at appropriate intervals around the perimeter of the track, with the fixtures directed at angles that cover the entire surface.
For oval-shaped tracks, lighting can be strategically placed around the perimeter to create a consistent spread of light across the track’s surface. The lighting layout typically involves placing poles at regular intervals around the track, ensuring that each section of the circuit is equally illuminated. For road course tracks, however, the lighting design is often more complex. Road courses feature more twists, turns, and elevation changes, requiring a more detailed and thoughtful placement of lighting poles to maintain uniformity across all sections of the track. Additionally, more sophisticated lighting systems with adjustable angles and greater flexibility may be used to meet the needs of these varied track designs.
Glare is one of the most challenging issues in race track lighting, particularly in high-speed racing environments where the need for clear visibility is paramount. For both drivers and spectators, glare can cause significant problems that affect their ability to see clearly, potentially leading to accidents or discomfort. While glare impairs a driver’s ability to navigate the track at high speeds, it also detracts from the overall experience for the audience, making it crucial to mitigate its effects effectively. To ensure both safety and comfort, glare control must be an integral part of the lighting design on race tracks.
Glare occurs when excessive or uncontrolled light shines directly into a person’s eyes, impairing their ability to see other objects or people clearly. For drivers, glare can be particularly dangerous because it temporarily reduces their vision, making it harder to spot obstacles, other vehicles, or changes in the track. This can be a serious issue, especially in high-speed races where every second matters and the margin for error is minimal.
For spectators, glare can make it difficult to enjoy the event. If the lighting system creates bright spots that interfere with their view of the race, the overall viewing experience can be diminished. Furthermore, spectators seated in the stands or in media areas can experience discomfort if glare from improperly placed lights is directed toward their eyes, affecting the enjoyment of the race.
To address these issues, glare control techniques must be employed throughout the design and placement of the lighting system. One of the most effective ways to mitigate glare is by using fixtures that have proper shielding. Shielding helps to prevent light from spilling in unwanted directions, ensuring that it is directed exactly where it is needed—on the track, and not in areas where it might interfere with visibility or cause discomfort.
Modern lighting fixtures are often designed with advanced optics that allow for precise control of the light beam. These optics ensure that light is focused on specific areas, reducing the amount of stray light that may cause glare. By focusing light with more accuracy, lighting designers can minimize unnecessary light spill and ensure that every area of the track is illuminated without creating harsh brightness in other areas.
Dimming capabilities also play a crucial role in glare control. Many modern lighting systems are designed to be adjustable, allowing operators to control the intensity of the light during the event. For instance, during certain moments, such as when a safety vehicle is on the track, the lighting can be dimmed to reduce glare while still providing adequate visibility. This flexibility allows race organizers to tailor the lighting intensity to different parts of the event, helping to maintain clear visibility without overwhelming drivers or spectators with excess light.
Another effective glare control measure is the careful positioning of lighting fixtures. The angles at which the lights are mounted can make a significant difference in reducing glare for both drivers and spectators. To prevent glare from blinding drivers, light fixtures should be positioned at specific angles that avoid direct exposure into the driver’s line of sight. This is especially important in areas like turns or pit exits, where the lighting could otherwise interfere with a driver’s view of the track. By adjusting the angles of the lights, designers can ensure that the light is distributed across the track’s surface without impeding the driver’s vision during critical moments.
For example, in a high-speed racing environment like Formula 1, where every millisecond counts, glare can have dangerous consequences. The light fixtures must be placed in a way that minimizes direct exposure to the driver’s field of view, which is why strategic placement around curves, turns, and other areas of high visibility is essential. In some cases, lights may be mounted at higher elevations or at specific angles to avoid direct line-of-sight interference.
Indirect lighting is another technique that can help minimize glare, especially when a more even, diffused light source is needed. Unlike direct lighting, where the light is aimed directly at the surface or object, indirect lighting involves directing light towards a surface such as a ceiling, wall, or other reflective material, which then bounces the light back down in a softer, more diffuse way.
Using indirect lighting for race tracks can be highly effective in reducing the harsh effects of glare. By reflecting the light off a surface, the intensity is diffused, making it less likely to cause sharp contrasts or bright spots that could potentially distract or blind drivers. Indirect lighting is particularly useful in areas where sharp shadows might otherwise form, such as in corners or elevated sections of the track. The softer light helps to fill in shadows without causing uncomfortable glare, ensuring that drivers maintain clear visibility while navigating the track.
In addition to providing a softer light distribution, indirect lighting can also contribute to energy efficiency. By reflecting light off surfaces, less direct illumination is needed, allowing for a reduction in overall power consumption. This can be particularly beneficial for reducing the environmental impact of race track lighting, as well as keeping operating costs lower.
While race track lighting is crucial for drivers, spectators and media must also be able to view the event clearly. Brightness levels in the spectator areas should be sufficient for visibility, yet not overpower the race track itself. Lighting designed for the stands must strike a balance between illuminating the audience and minimizing light pollution, ensuring the race remains the focal point of the event.
Media areas, including TV broadcast booths and cameras, require specific lighting setups to ensure clear footage. High-definition broadcasts demand specialized lighting that prevents flicker or shadows. Broadcast lighting should be balanced carefully with the ambient lighting levels to ensure the race can be viewed clearly from different angles, both in person and on screen.
Race tracks are exposed to a wide range of weather conditions, from intense sunlight to heavy rain, and even fog or snow in certain locations. Because race track lighting systems are constantly exposed to these varying elements, it is crucial that they are designed to withstand such conditions without compromising their functionality. The durability and performance of the lighting system are just as important as the quality of illumination it provides, as any malfunction can lead to reduced visibility, safety concerns, and poor race experiences for both drivers and spectators.
To ensure long-term durability and performance in these challenging environments, race track lighting fixtures are typically constructed using weather-resistant materials. Common materials include aluminum, stainless steel, and specialized plastics, which offer resistance to rust, corrosion, and other forms of damage caused by environmental conditions.
Aluminum and stainless steel are particularly well-suited for this purpose because they can withstand extreme temperatures and resist corrosion even in harsh, humid conditions. These materials also provide a lightweight yet sturdy structure for the fixtures, ensuring that they remain intact during intense weather events. Additionally, these materials help prevent the growth of mold or mildew, which could obstruct light output over time.
Specialized plastics are often used in the lenses or covers of light fixtures. These plastics are designed to resist UV radiation from the sun and maintain their transparency even after prolonged exposure to sunlight. UV-resistant plastics prevent yellowing, which can otherwise diminish the quality of the light emitted by the fixtures.
One of the most critical considerations for race track lighting is the ability to handle moisture, as rain and humidity can significantly impact the performance and longevity of the lighting system. Fixtures used in outdoor environments must be protected from water ingress, which can cause electrical failures or damage to internal components. This is where Ingress Protection (IP) ratings come into play.
For race tracks, it is recommended to use lighting fixtures with an IP65 or higher rating. An IP65 rating indicates that the fixture is fully sealed against both dust and water ingress, which is especially important in areas exposed to heavy rainfall. The “6” in the rating signifies that the fixture is dust-tight, preventing dust and debris from entering the fixture. The “5” means the fixture can withstand water jets from all directions without causing any harm to its internal components. This level of protection is particularly essential for race tracks, as unpredictable weather conditions can cause fixtures without adequate ratings to malfunction or degrade over time.
In addition to rain, race tracks in colder climates may need to account for snow and ice, which can accumulate on light fixtures and obstruct their function. A lighting solution designed for these conditions will feature anti-icing capabilities or drainage systems that prevent the accumulation of snow or ice. This ensures that the lights remain clear and unobstructed, even in the most extreme weather conditions.
Corrosion is another challenge that must be addressed when designing race track lighting systems, especially in coastal areas or regions with high levels of air pollution. In these locations, salty air and other environmental factors can cause standard lighting materials to corrode over time, affecting both their performance and aesthetics.
To prevent this, race track lighting fixtures should be made from corrosion-resistant materials or have protective coatings applied to their surfaces. Corrosion-resistant metals such as stainless steel are commonly used in coastal areas to withstand the effects of saltwater exposure. Additionally, specialized coatings can be applied to fixtures to protect them from the corrosive effects of salty air, ensuring that the lighting system remains functional and visually appealing for many years.
Race track designers must also consider the local environment when selecting lighting solutions. Areas with high pollution levels or exposure to chemicals can accelerate the rate of corrosion. Therefore, it is important to choose fixtures that are specifically engineered to resist the effects of the local environment, whether that be coastal salt, industrial pollution, or high humidity. The right materials and coatings will help to maintain the integrity of the lighting system, ensuring that it continues to provide optimal illumination under all weather conditions.
With the rising concern over energy consumption and environmental impact, race tracks are increasingly adopting energy-efficient lighting solutions. LED lighting has become the industry standard due to its energy-saving potential, long lifespan, and low maintenance requirements. LEDs use far less energy than traditional lighting systems, which helps to reduce the overall operating costs of the race track.
In addition to energy efficiency, sustainability is becoming a key consideration in race track lighting. Many race tracks are turning to renewable energy sources, such as solar or wind, to power their lighting systems. This helps to reduce their carbon footprint and ensure that race events remain environmentally responsible.
Furthermore, the longevity of LED lights means that they require fewer replacements, which reduces waste and contributes to a more sustainable operation. Additionally, many modern LEDs are designed to be fully recyclable at the end of their lifespan, further supporting sustainability efforts.
The design of a race track lighting system involves numerous considerations, from environmental factors and energy efficiency to glare control and uniformity of light distribution. It’s important that race tracks maintain adequate lux levels for both drivers and spectators, provide uniform lighting to minimize dark spots, and ensure that glare does not compromise visibility. Furthermore, advancements in energy-efficient technologies like LED lighting are transforming the landscape of race track lighting by making systems more sustainable, cost-effective, and long-lasting. Ultimately, a well-designed lighting system enhances the experience for everyone involved, creating a safe, enjoyable environment that supports the dynamic nature of motorsports.
